Šifra proizvoda: #17870

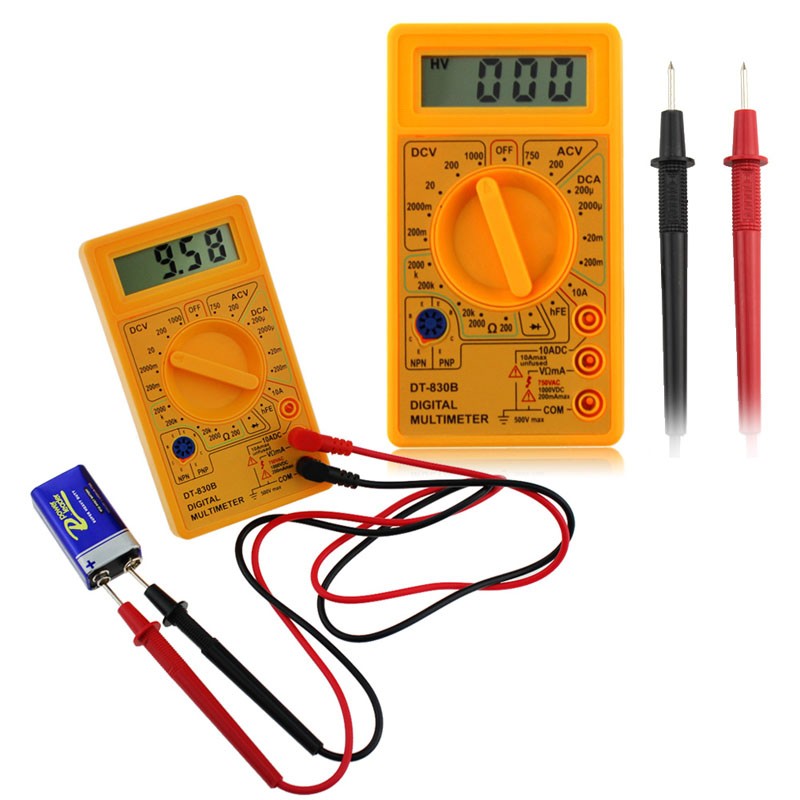

UNIMER DT830B

Unimer, DT830B, tri i po cifre, bez baterije

3 1/2 digits, 7segment, 0.5"high LCD Display.
Max display: 1999, Auto polarity display.
Small and compact design.
Overload protection on all ranges.
Sampling 2č3 times readings per second.
Diode assembly test / Transistor hFE test.
Low battery voltage indication.

Measuring range:
Max AC Current: 10A
Max AC Voltage range: 1000V
Max DC Voltage range: 750V
Resistance Measurement: 200 Ohm-2000K Ohm range
Temperature Test: -40-1000 ℃
Power Supply: 9V Battery (Not Included Here)
Size: Approx. 123 x 67 x 20mm (L*W*H)


Scale degree & Accuracy:
DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2)
AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2)
Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)
