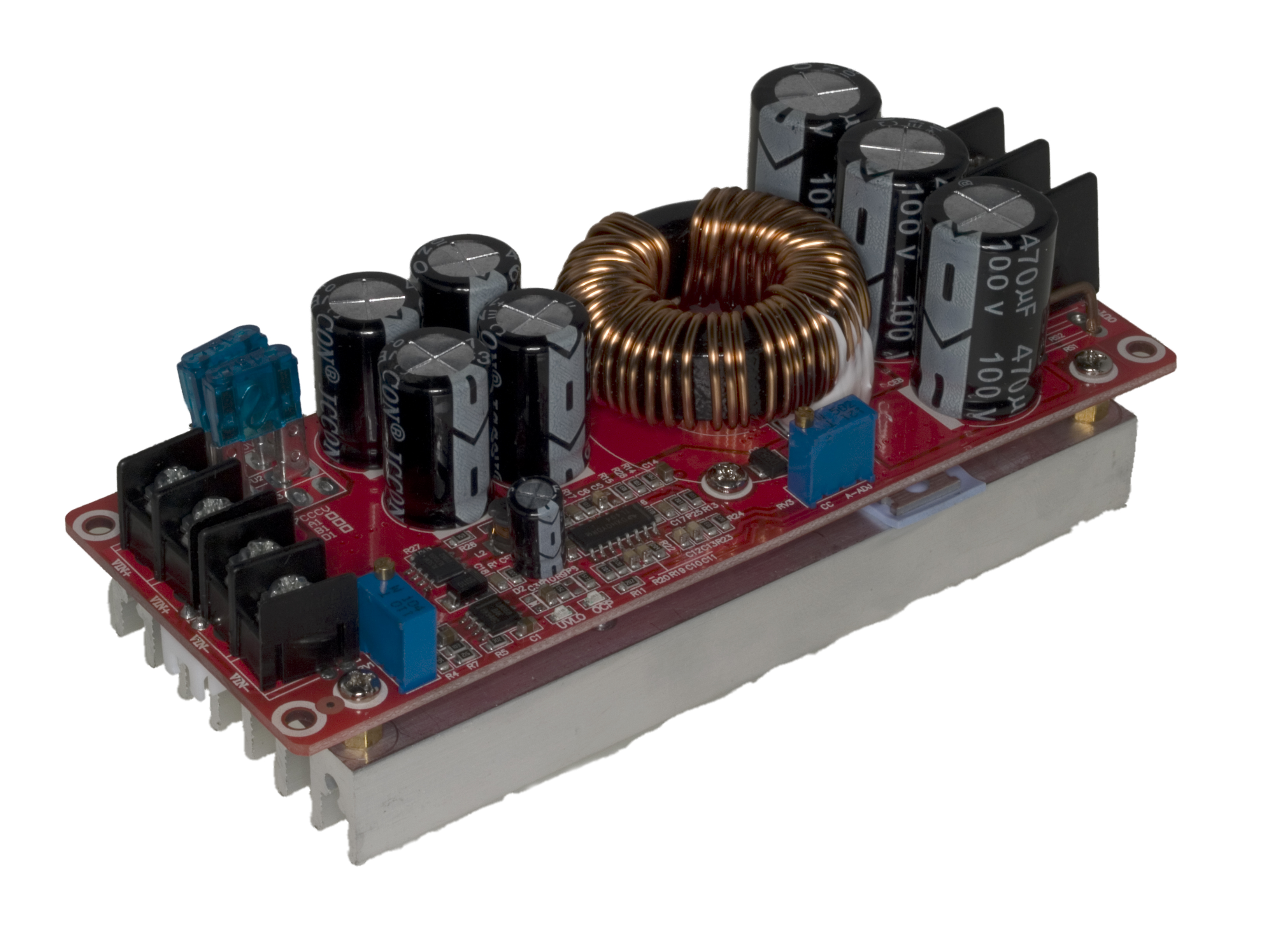

1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V
Na stanju
Šifra proizvoda: #20139
DC/DC BOOST 1200W
1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V
Module name: 1200W boost constant current module
Module properties: non isolated boost module (BOOST)
Input voltage: 8-60V
Input current: 20A
Quiescent operating current: 15mA
Output voltage: 12-83V continuous adjustable
Output current: MAX 12A over 20A, please strengthen
the cooling (with input and output differential pressure,the greater the pressure difference between the output current is small)
Constant current range: 0.3-20A
Output power: = input voltage X 10A
Working temperature: -40č+85 degrees
Working frequency: 150KHz
Conversion efficiency: ≤95% (efficiency and input, output voltage,current, pressure difference)
