Šifra proizvoda: #20307

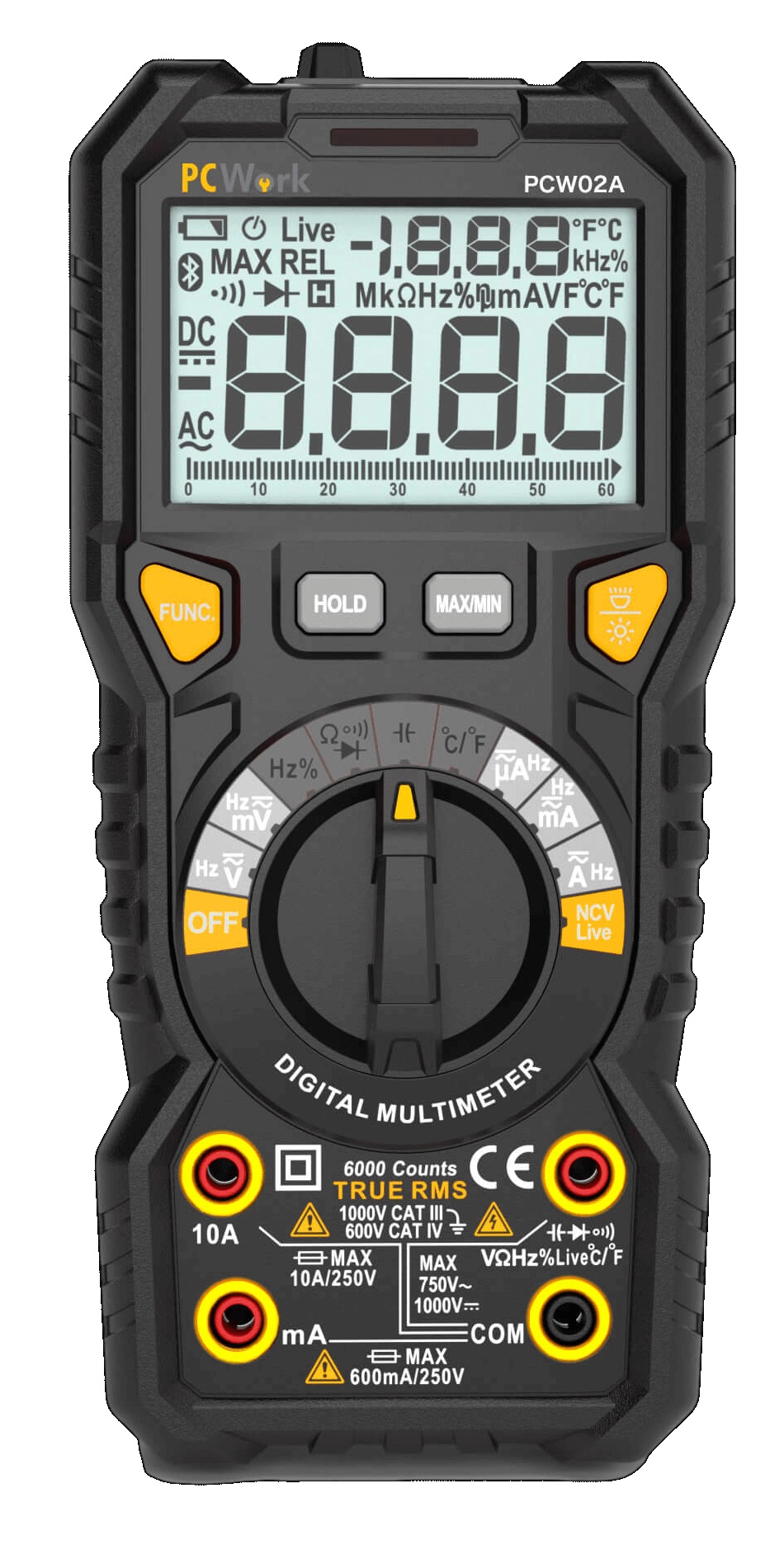

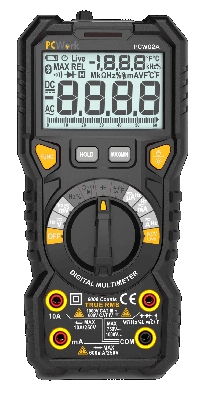

UNIMER PCW02A

Digitalni multimetar

CAT III 1000V, CAT IV 600V

6000 counts

True RMS

Auto Range

AC/DC voltage, current, resistance, capacitance, frequency, duty ratio, and temperature measurement

NCV (non-contact voltage), live line, continuity, and diode test

Double ceramic fuses, PTC thermistors

2.9” bi-color backlight LCD display with bargraph function

Data hold with Max/Min function

LED illuminated input sockets

LED work light and bracket

Great packaging design and manual with pictures in various languages available

Includes batteries & high-quality test leads


DC voltage
600mV/6V/60V/600V/1000V ±(0.5%+3)

AC voltage
600mV/6V/60V/600V/750V ±(0.8%+5)

Direct current
600uA/6000uA/60mA/600mA ±(0.8%+3); 10A ±(1.2%+3)

Alternating current
600uA/6000uA/60mA/600mA ±(1.0%+3); 10A ±(1.5%+3)

Resistance
600Ω/6kΩ/60kΩ/600kΩ ±(1.0%+3);6MΩ/60MΩ ±(1.5%+3)

Capacity
10nF/100nF/1μF/10μF/100μF/1mF ±(4,0%+3);10mF/100mF ±(5.0%+5)

Frequency
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz ±(1.0%+3); 10MHz±(3,0%+3)

Duty cycle
1%č99% ±(3.0%+3)

Temperature (°C)
-20°Cč1000°C ±(1.0%+3)
