Šifra proizvoda: #20583

DC/DC 1.25-36V 15A

DC/DC konverter, 200W, 10A, Ulaz 8-55V, Izlaz 1-36V

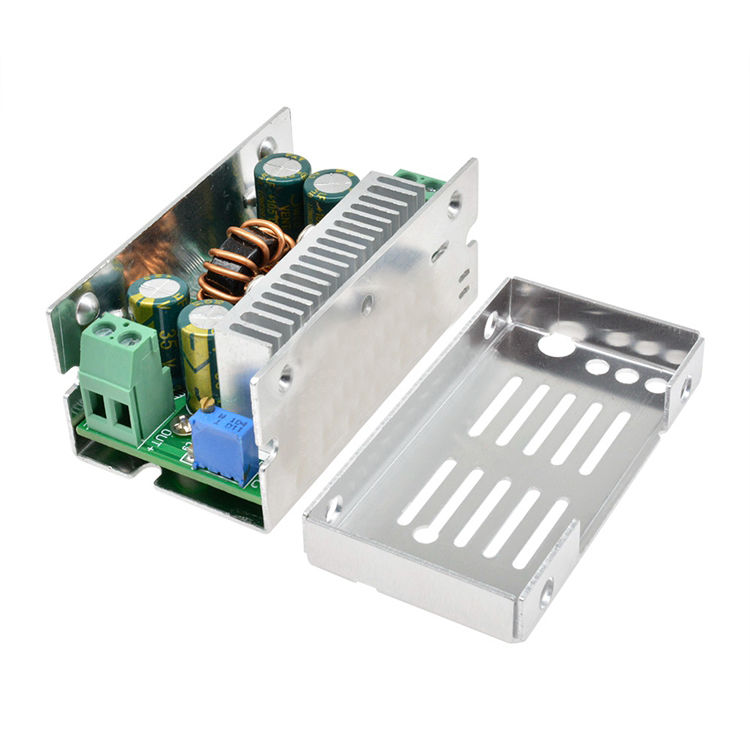

Name: 200W adjustable synchronous buck module
Type: Non-isolated step-down module (BUCK)
Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
Input voltage: 8-55V (limit 60V, please leave allowance)
Output voltage: 1-36V continuously adjustable (the default output 12V)
Output Current: Normal 10A , MAX15A
Output power: natural cooling ventilated long-term power 100W
To enhance heat dissipation up to 200W
Such as long working hours, please note left margin and make the heat rise
Operating temperature: -10 to +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94%
Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
Reverse polarity protection: (reverse does not burn
